New Seven Ton Bunker Offset Harvester with Additional Haulm Separation System
The new AVR Spirit 7200 comes with a drawn, two-row offset potato harvester, practically a further development of the Spirit 6200.
„Since chemical haulm destruction is increasingly prohibited and mechanical haulm topping is an issue, one of the challenges was deciding how to handle these conditions in a haulm web machine. The Spirit 7200 is a response to this, integrating an additional haulm separation system in the form of a haulm roller just upstream of the in-line pintle belt. In addition, a trash web under the haulm web ensures that potatoes that «dropped» late remain in the machine and that any haulm that does fall through the haulm web is removed,” according to recent info published online.
What’s New About the Spirit 7200
AVR Connect – the 7200 is the first two-row harvester that can be equipped with the AVR Connect option. This allows the user to access his machine data online.
Drawbar – the drawbar is fitted with a frame that neatly conceals all hydraulic equipment and electrical cables to the tractor.
Digging unit – the Spirit 7200 is equipped with a quick-change kit as standard. This means that the user can change the digging unit in just a few minutes to allow a different crop to be harvested.
Mechanical and, as an option, hydraulic depth adjustment are available.
Haulm web/sieving web

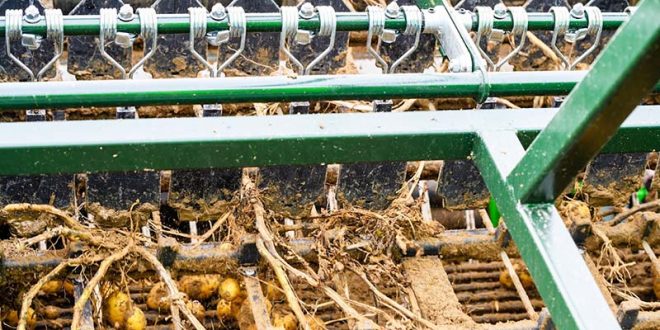

Two rows of three haulm retainers ensure that the potatoes stay neatly inside the machine. Here, attention has been paid to ensuring that there is a distance between the rows of retainers and that there is an efficient and robust mechanism in place to fold the frame upwards in the event of accumulations.
The haulm and sieving webs are close to one another so that the drop height from the digging web to the sieving web is limited, something that is unique in the market.
At the rear of the machine, under the haulm web, is a conveyor that can remove haulm that falls late and that can return potatoes that fall late back into the machine.
The picking-off table comfortably accommodates six people. For the best ergonomics, the table has been made as flat as possible.
All functions relating to cleaning at the rear of the machine can be operated easily with a clear keypad or mechanical handles.
The fixed bunker is 9.6 cubic meters in size with a width of two meters and can hold up to seven tons (cf. reference to 7200). A shock absorber is also an option – it can be folded hydraulically and transported on top of the machine.
The Spirit 7200 runs smoothly thanks to the decision to opt for high wheels (30.5 rim). Different sizes are available (in some cases, dependent on the version): 650/65 R 30.5 and 850/50 R 30.5. Twin row-crop tires 380/80 R 38 are available, primarily to help prevent protrusion.
The machine is controlled by the ISOBUS system. This can save on a screen in the tractor if desired. AVR offers two types of display: Mueller touch 800 and Mueller smart 570.
The 7200 offers numerous automatic functions, for example, the adjustable position of the rotor comb, the automatic level correction, the automatic back pressure control on the digging unit, the automatic control of the bend in the picking-off table, the automatic movement of the bunker floor the angle of the pintle belts, and the automatic row following system, etc.
The first two prototypes entered field operation last year and received positive feedback from users. Some ten new harvesters started operation in the field this year. If Interpom (BE) takes place on November 28, 29, and 30, it will be the first trade fair at which visitors will be able to view the machine.
